Good Quality Plastic Auto Parts Mold for Molding serviceFixed pump injection molding machine SLA128 Details

MACHINE MODEL SLA128
INJECTION UNIT  A B C
SCREW DIAMETER (MM) 35 38 42
SCREW L/D RATIO (L/D) 23.8 21.9 19.8
INJECTION PRESSURE(Mpa) 246 208 171
SHOT VOLUME(CM³) 182 215 263
INJECTION WEIGHT (G) 161 190 232
INJECTION RATE(CM³/S) 101 120 146
SCREW SPEED(RPM) 268
INJECTION STROKE(MM) 190

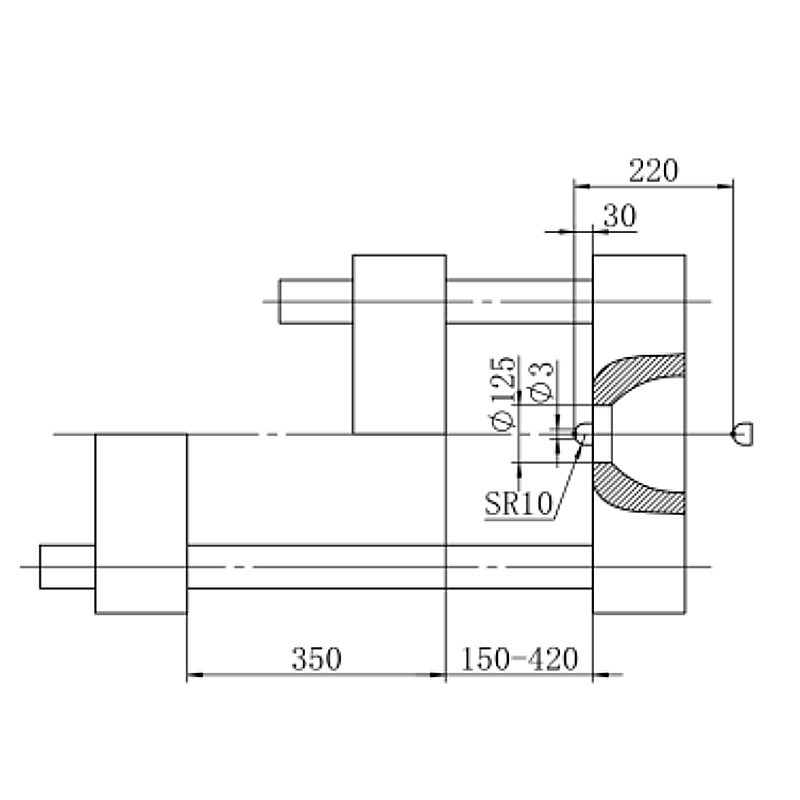

CLAMPING UNIT
CLAMPING FORCE(KN) 1280
TOGGLE STROKE(MM) 350

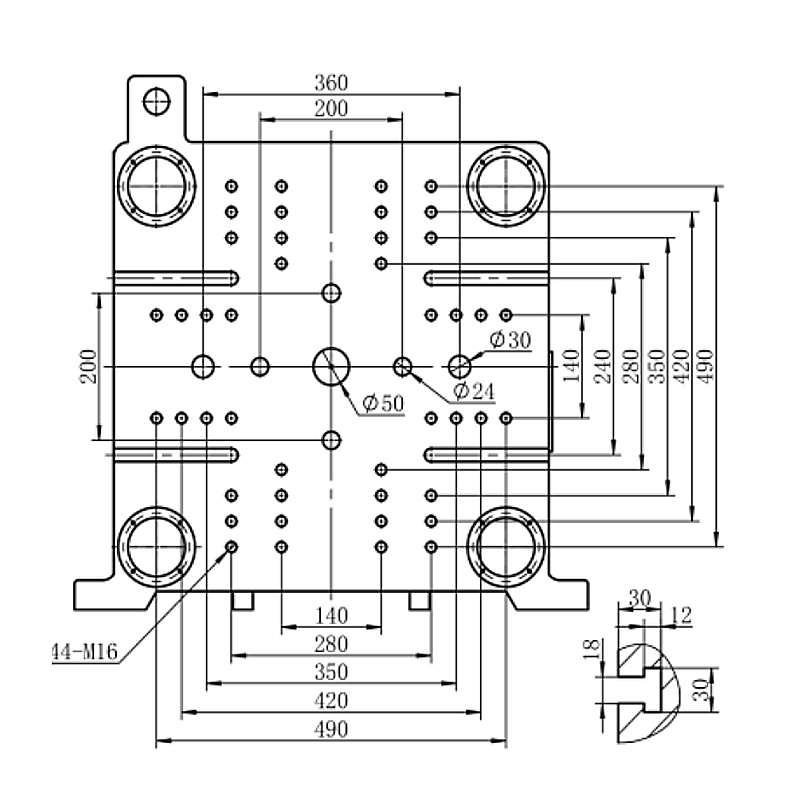

SPACE BETWEEN TIE-BARS(MM) 410X380
MAX.MOLD HEIGHT(MM) 420
MIN.MOLD HEIGHT(MM) 150
EJECTOR STROKE(MM) 110
EJECTOR TONNAGE(KN) 45
OTHERS
MAX.PUMP PRESSURE(Mpa) 16
SERVO MOTOR POWER(KW) 13
HEATER POWER(KW) 7.8
HEATING SECTION(part) 3+1
OILTANK CUBAGE(L) 230
MACHINE DIMENSIONS(M) 4.30X1.3X1.9
MACHINE WEIGHT(T) 3.4
Trustworthy operational system which to fulfill every demand

This system features high stability and highresponse speed,using colorful LCD. Easyoperation of man- machine interface, also ithas a number of peripheral interfaces.
Control system applies all digital computer special controller, with multiple CPU division processing.It has multi-function automatic fault detection and alarm system. It capable to storage99 sets moulds processing procedure. Equip with remote control interface.This system featureshigh stability and high response speed, using colorful LCD.Easy operation of man- machineinterface, also it has a number of peripheral interfaces."

STABLE AND RELIABLE OFELECTRIC CONTROLSYSTEM

Control system applices all digital computer special controller, with multiple CPU division processing.
1.strong function and easy operation
2.High quality electrical elements,enhanced
3.hardware circuits, strong anti-interference ability,Stable and reliable of electric control system reliable running and high stability.

HIGH STABILITY,ACCURACY AND HIGH REPEATABILITYINJECTION UNIT

Six zone injection and five zone pressure protection areseparately controlled by precise linear transducer andtime control.Each zone action pressure and speed canbe setting as demand. It features stable injection andaccurate pressure protection,high repeatability. Theresidual stress of molded products is stable andconsistent.

Using world famous valves to control injection molding actionsprecisely, make the system performance stability and reliability.

Main hydraulic components, sealing ringsand high pressureflexible hose are worldfamous brands.
Oil distirbute block placed in reasonable way,the system has fast response and excellentdynamic performance.

MOULD PLATEN HIGH RIGIDITY ANDSMOOTH MOVEMENT

1.Oblique arranged double toggle mechanical mould clamping unit
2.Mould cooling water distributor
3.Low pressure mould protection device
4.cores installation standard interface
5.Multi-zone mould open& close pressure, speed and position control
6.Automatic centralized lubrication system
7.Multi type hydraulic ejector modes
8.Linear transducer control mould open& close and ejector
9.Fast speed mould close pressure differential device
10.Auto mould thickness adjustment (optional)
